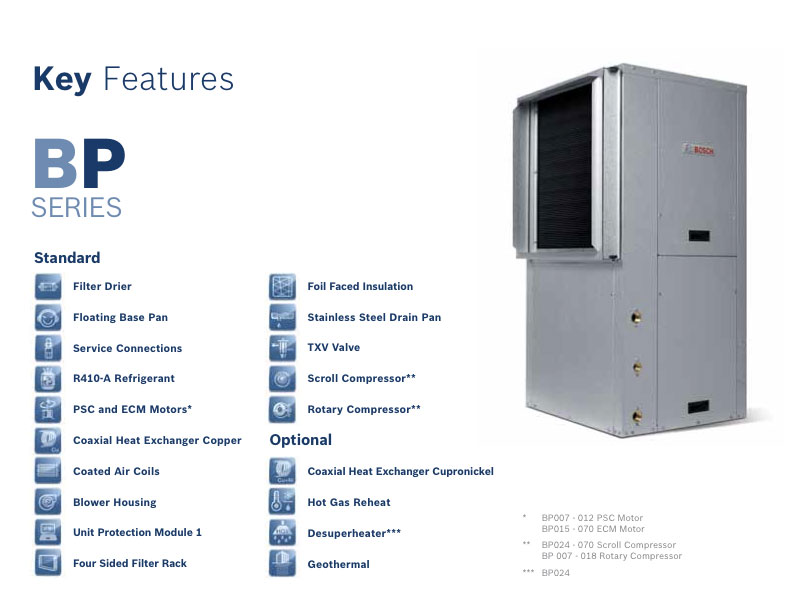

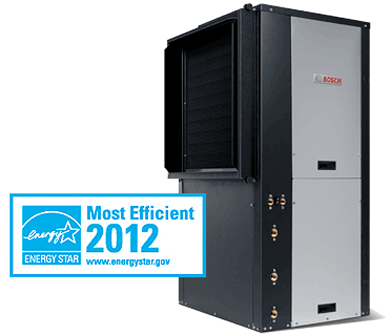

This single stage geothermal heat pump unit offers best-in-class energy efficiency and lower operating costs, providing you the ultimate value for your money.
| MODEL | Clg Capacity MBtuH | EER | Htg Capacity MBtuH | COP | Dimensions HxWxD | Weight Lbs. | COMPRESSOR | BLOWER MOTOR | CFM RANGE | R410A CHRG OZ. |
|---|---|---|---|---|---|---|---|---|---|---|
| BP007 | 8.0 | 25.0 | 7.0 | 5.0 | 32.75x21.5x21.5 | 185 | Rotary | PSC | 245-430 | 29 |
| BP009 | 11.0 | 26.0 | 9.0 | 5.0 | 32.75x21.5x21.5 | 192 | Rotary | PSC | 245-430 | 41 |
| BP012 | 15.0 | 23.0 | 13.0 | 4.0 | 32.75x21.5x21.5 | 205 | Rotary | PSC | 290-450 | 40 |
| BP015 | 17.0 | 29.0 | 13.0 | 5.0 | 39.5x21.5x21.5 | 218 | Rotary | ECM | 250-590 | 35 |
| BP018 | 21.0 | 26.0 | 18.0 | 5.0 | 39.5x21.5x21.5 | 222 | Rotary | ECM | 360-700 | 35 |
| BP024 | 28.0 | 28.0 | 24.0 | 5.0 | 47.5X24.25X26.24 | 340 | Scroll | ECM | 520-950 | 35 |
| BP030 | 32.0 | 27.0 | 24.0 | 5.0 | 47.5X24.25X33.5 | 404 | Scroll | ECM | 675-1200 | 71 |
| BP036 | 40.0 | 26.0 | 34.0 | 5.0 | 47.5X24.25X33.5 | 415 | Scroll | ECM | 920-1440 | 71 |
| BP042 | 46.0 | 26.0 | 41.0 | 4.0 | 58.5X26.0X33.5 | 465 | Scroll | ECM | 1085-1710 | 79 |
| BP048 | 54.0 | 26.0 | 41.0 | 4.0 | 58.5X26.0X33.5 | 470 | Scroll | ECM | 1330-2000 | 86 |
| BP060 | 67.0 | 24.0 | 57.0 | 5.0 | 66.5X26.0X33.5 | 520 | Scroll | ECM | 1390-2370 | 105 |
| BP070 | 71.0 | 22.0 | 71.0 | 5.0 | 66.5X26.0X33.5 | 562 | Scroll | ECM | 1410-2400 | 145 |
